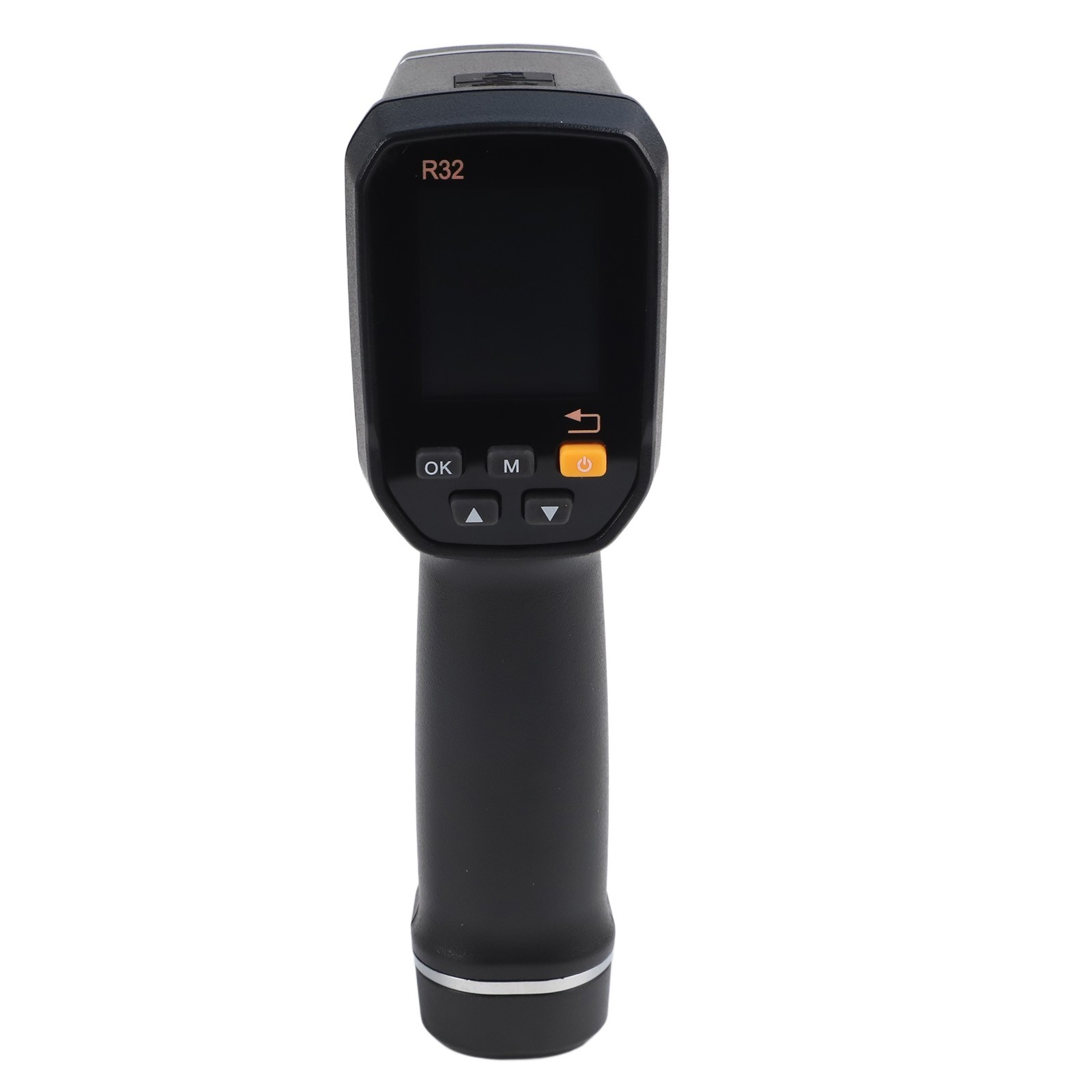

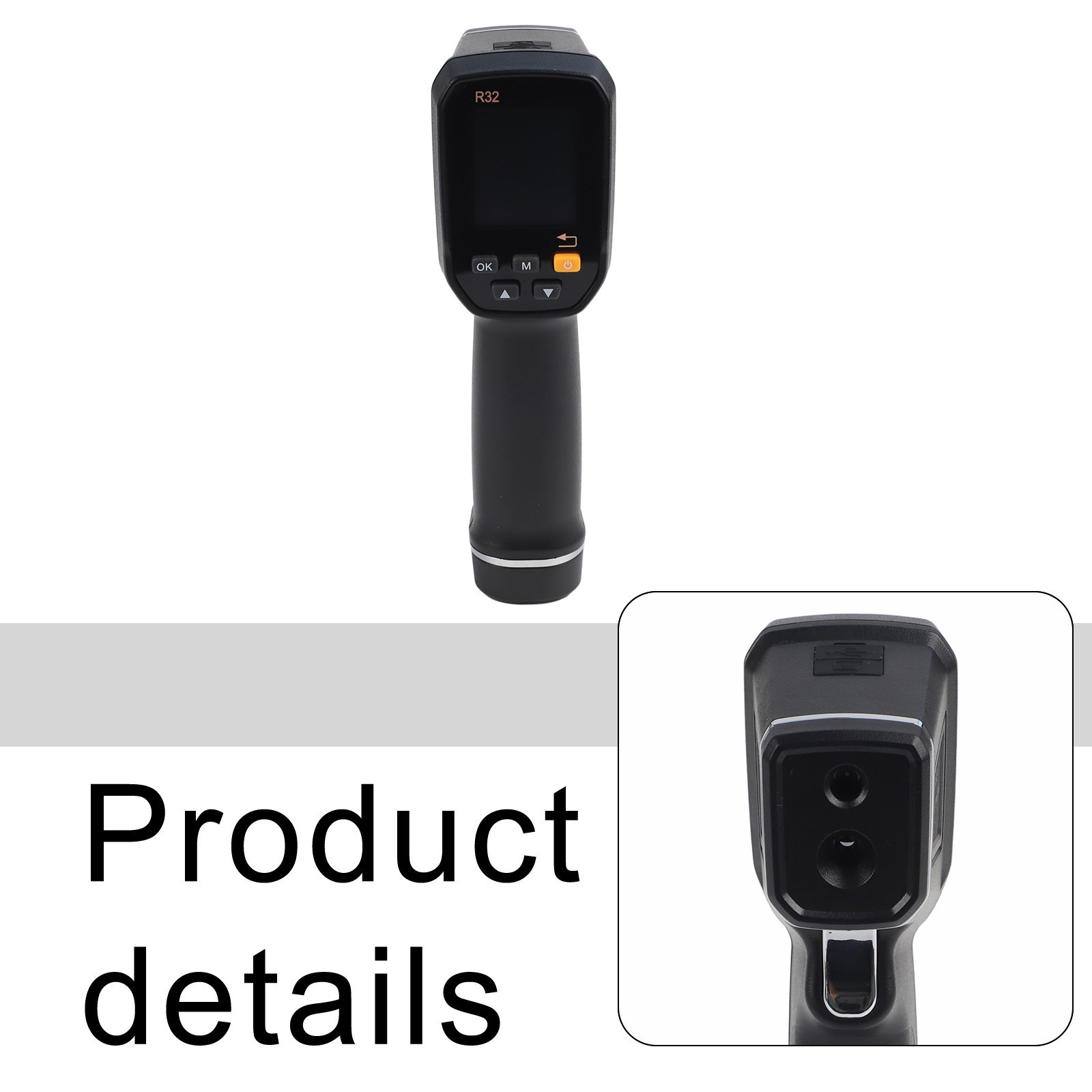

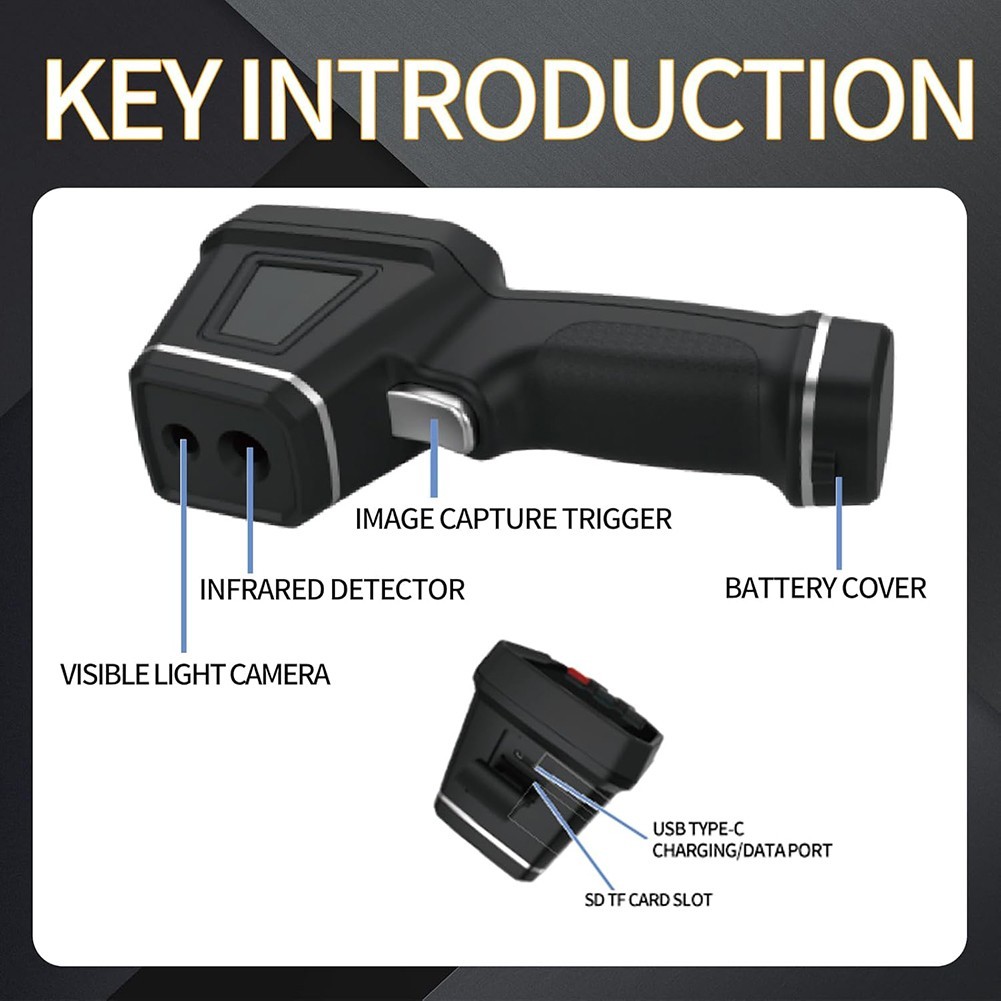

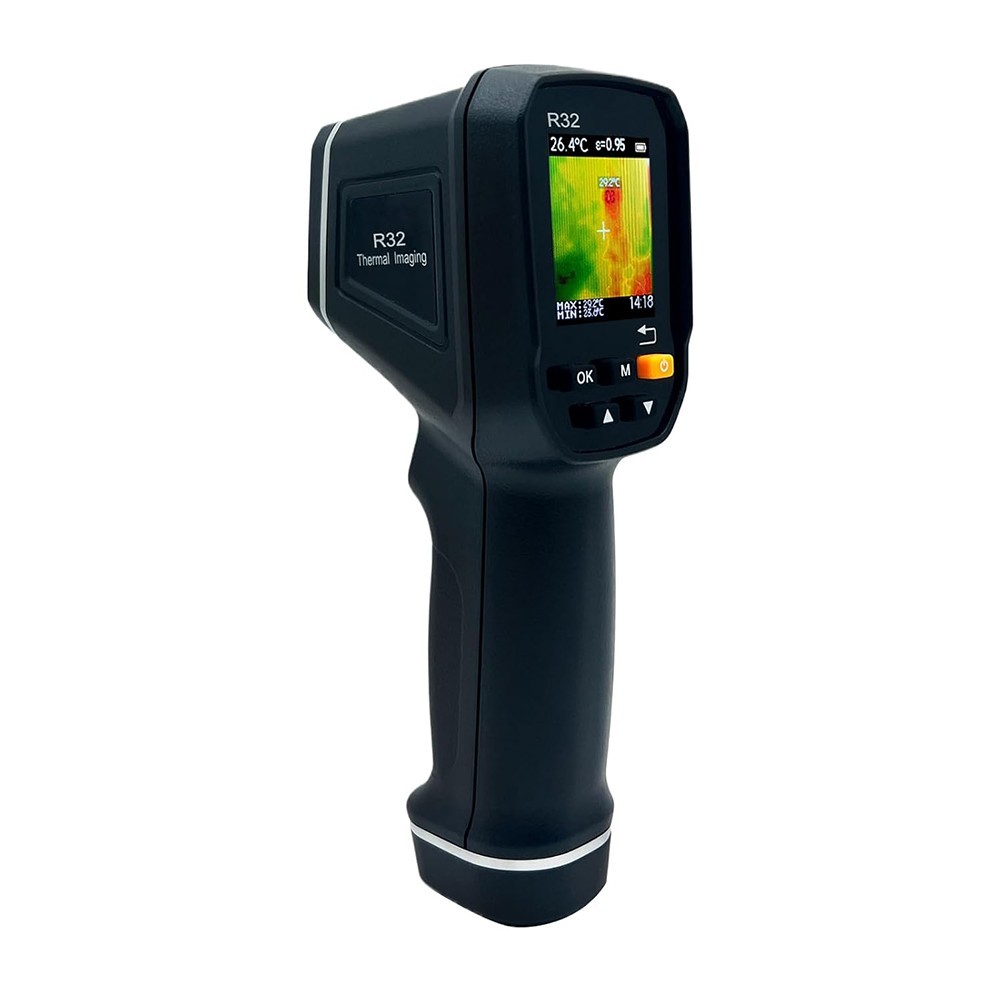

Portable Infrared Thermal Imaging Camera 177 Inch Display USB Rechargeable

Features:
* Infrared thermal imaging, showing hot spots and cold spots on the screen, allowing users to observe the temperature changes of objects more effectively. It can help you quickly lock the target area.
* Standard 8GB memory card, which can save a large number of images and data, generate high-quality infrared images, and is a powerful tool for fault repair. Infrared thermal imagers have a wide range of applications, including preventive maintenance, condition monitoring, non-destructive testing, research and development, medicine, temperature measurement, thermal testing, law enforcement, security and production process control.
* The distance recommended for measurement is within 50cm. The farther the distance, the greater the error. 2. This instrument provides Chinese and English languages, which can be switched. Equipped with Chinese and English manuals. 3. This instrument has a relatively small screen and low resolution, which is suitable for measurements with low requirements. If the measurement requirements are relatively high, please choose other more accurate instruments. 4. This instrument has a built-in battery and the battery cover cannot be opened.

Specifications:
Part name: Infrared thermal imager
Material: ABS, metal
Color: black
Display: 1.77-inch TFT color display
Camera pixels: 300,000
Infrared thermal image resolution: 32 x 32 pixels
Visible image resolution: 640x480 () 128x128 (effective)
Field of view: 34° (infrared) 65° (visible light)
Focus: fixed focus (infrared 5.0mm)
Image spacing: 44um (infrared)
Thermal sensitivity: 0.7~1.1K (infrared NETD)
Thermal image frame rate: 8Hz
Temperature measurement range: -30℃~+500℃ (-22F~+932F)
Temperature measurement accuracy: +/-3% or +/- 3K
Emissivity: 0.01~1.00 Adjustable
Wavelength range: 8~14um
Temperature display: minimum, center, maximum
Image mode: thermal visible light, thermal visible light fusion
Color for palette: 32 colors, for rainbow, iron red, rock red, white hot, black hot
Language: Chinese/English
Unit: C/F
Storage space: 8GB ( for mini TF card)
Image format: BMP
Interface type: Type-C USB
Automatic shutdown time optional: no shutdown, 1 minute, 3 minutes, 5 minutes, 10 minutes, 30 minutes, 60 minutes
Operating temperature: 0℃ to 40℃
Storage temperature: -10℃ to 50℃
Relative humidity: <85%RH
Battery type: built-in lithium battery 3.7V/1000mAh
Product size: 7.28x3.27x2 inches (185x 83 x 51 mm)

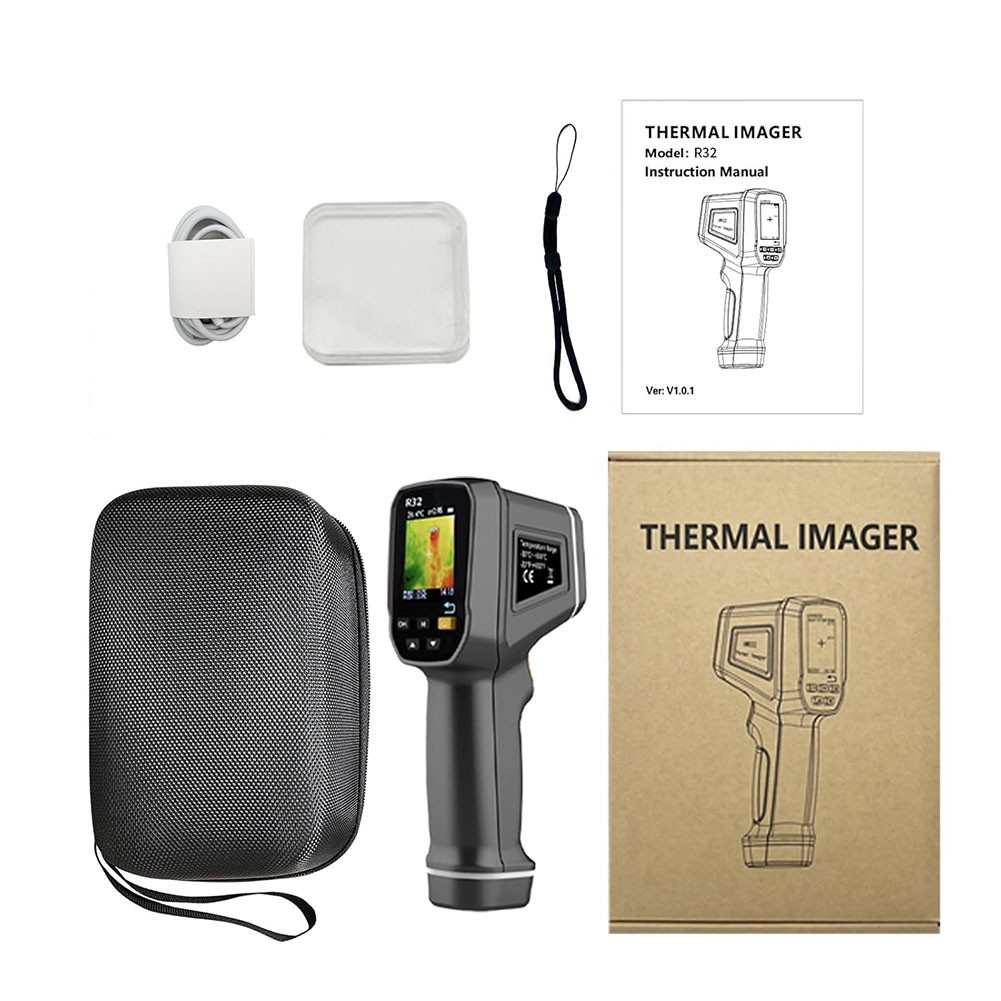

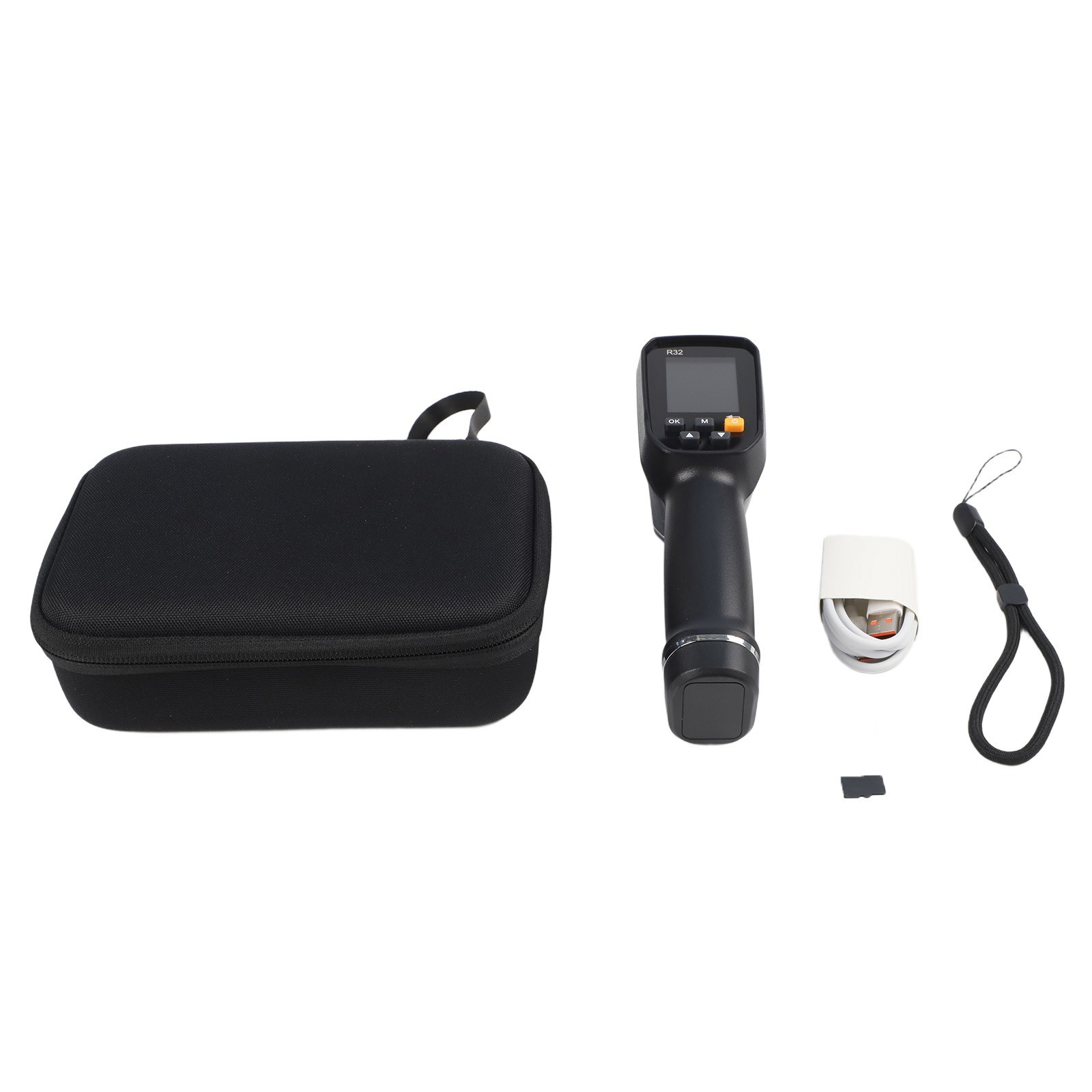

Package contents:
1 x thermal imager
1 x color box
1 x manual
1 x storage bag
1 x 8GB card
1 x Type-C USB cable
1 x Lanyard

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
